CCS - Gardasoft

CCS America is dedicated to providing its customers with the highest quality LED lighting for image processing applications. Their innovative designs will give you images of superior quality and maximum contrast. CCS America offers high quality products and advanced lighting technologies, and is continually developing new lighting systems that will meet a diverse range of needs. Gardasoft Vision designs and manufactures high intensity LED Illuminators, and high performance pulse / strobe controllers for LED Lighting - providing unique solutions to the global machine vision market.

Standard ProductsCCS Standard Products

Used by thousands of customers worldwide, CCS Standard Products are available in more than 300 standard and 5000 custom designs. CCS has been providing the most reliable, compact LED illuminators in the market since 1992. High-density ring light units are ideal for applications where irradiance must be focused at the center of the workpiece. With their low angle ring light units the edges of the workpiece and any engraving or damage on the surfaces can be detected clearly through low-angle illumination. Bar light units feature high-density LEDs mounted on a flat circuit board. They can be used for a wide range of applications because the illumination angle can be freely set. Backlights are designed to illuminate workpieces from the back. They are ideal for external appearance photography or penetration photography.

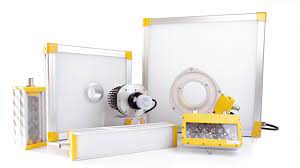

High Output Lights

high output lights

CCS AMERICA has introduced a new line of high output lights ideal for palletizing, web inspection, robot guidance, and packaging applications in the automotive and food and beverage industries. The robust aluminum design provides superior heat transfer for maximum LED performance. The HL Series is ideal for consumers who need high-intensity lighting in applications with long stand-off distances. These high intensity lights are excellent for large area illumination and provide a long life – 50,000 hours typically.

QL Series

Hydraulic Dampers

CCS America offers a quality line for general purpose machine vision applications. The QL series LED lights are designed for the budget-minded consumer. This complete line of lights utilizes 24-volt input. These high quality, cost effective lights provide simple connectivity with industry standard M12 connectors and provide high brightness and uniformity.

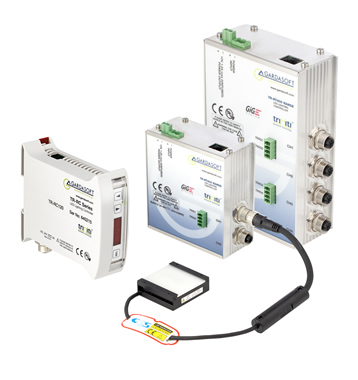

Triniti LED Pluse ControllersTriniti LED pulse controllers

Gardasoft TR Series LED Controllers are a core component of a Triniti Intelligent Lighting system. Triniti is a new enabling technology from Gardasoft which provides expert control, operational intelligence and a full integration of machine vision lighting - all within a 'plug & play' environment.

  • 1, 2 and 4 channel LED lighting controllers
  • Compatible with Triniti Intelligent Lighting platform
  • GigE Vision compliant
  • Pulsing up to 20A
  • Continuous output to 3.0A
  • 30W maximum output per channel
  • Pulse timing to 20µs

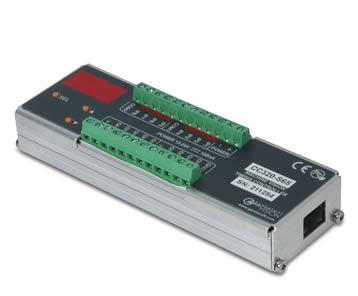

Trigger-timing Controllers

trigger timing controller

The CC320 Series provides an easy and complete working solution for accurate timing of component sensing, camera triggering and reject gates. Timing can be based on precise delays or on exact conveyor belt travel using an encoder.

  • integrates encoders, cameras, lighting, proximity sensors, reject gates
  • Fast and simple set up – no complicated programming routines
  • Ethernet-enabled for remote interfacing
  • Fast and accurate timing functions
  • Small compact size

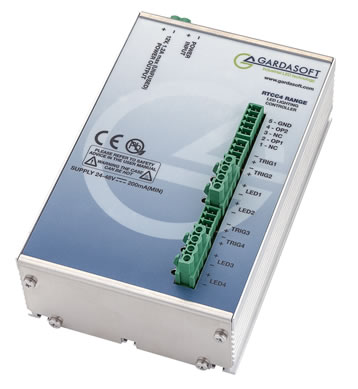

Combined LED Pulse and Timing Controllers

timing controller

The RTCC4 combines all the features of the Gardasoft RT Series with the timing functionality of the CC320. The combination provides a high level of integration in machine vision systems - saving complexity, space and costs.

  • Combines Lighting Control with Trigger Timing
  • Two extra digital outputs to standard Gardasoft RT Controllers
  • Includes all RTCC4 timing and sequencing functionality
  • Encoder input
  • SafePower™ and SafeSense™ technologies for lighting control

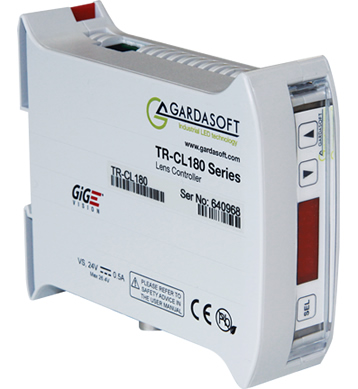

Industrial Lens Controllerslens controller

The Gardasoft TR-CL Series is single channel industrial lens controllers which provide very accurate and repeatable control of turnable lenses. They have been developed in close collaboration with Optotune.

  • One channel, high- resolution output
  • Include constant current lens drive and lens EEPROM data communications
  • -400mA to +400mA in 0.1mA steps
  • Compatible with Optotune EL-10-30-Ci and EL-16-40-TC lenses
  • Full current calibration with lens temperature compensation

Clayton Controls is a CCS America, Gardasoft distributor in California. We offer technical support to help our customers solve their applications.
